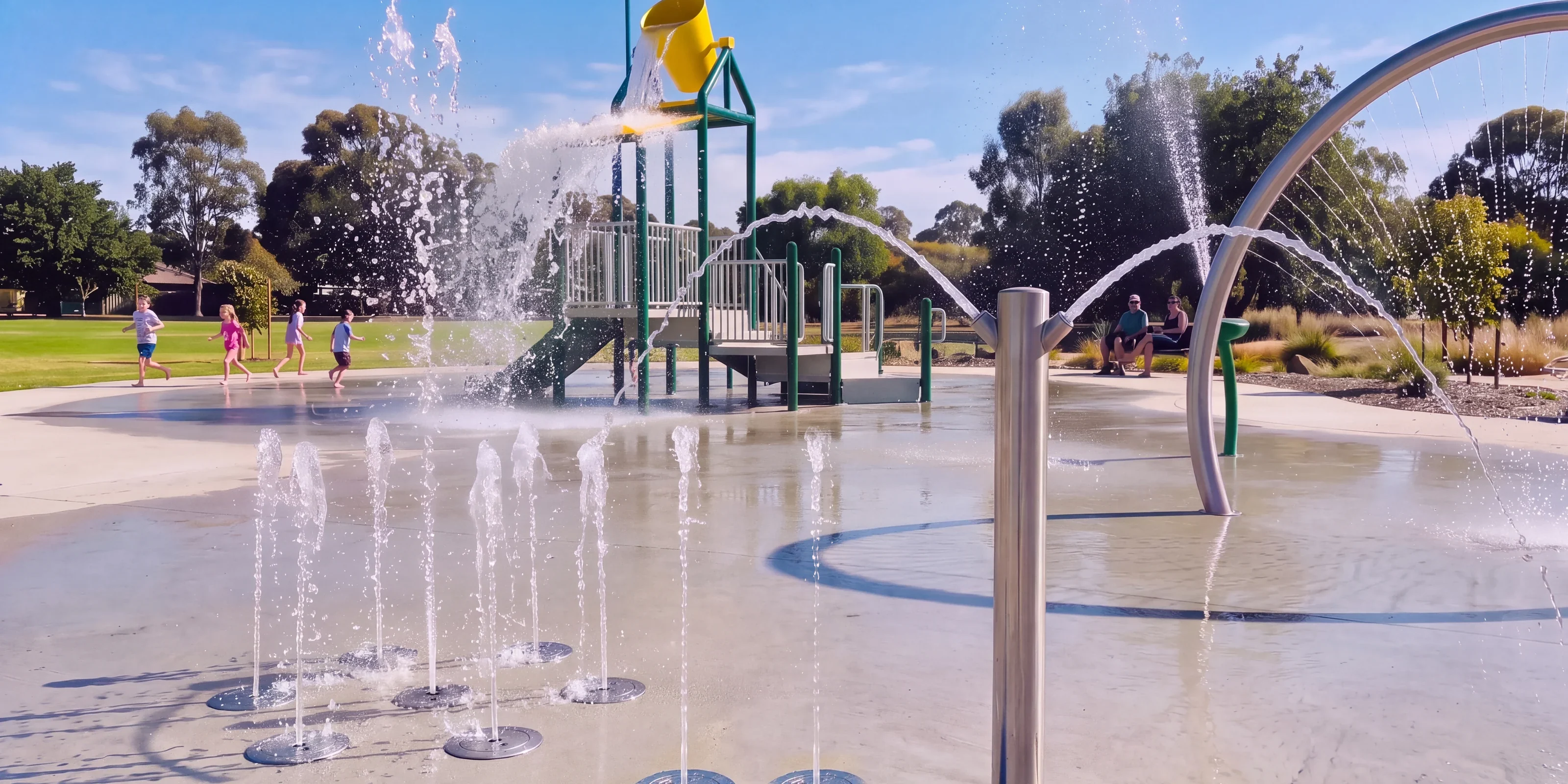

A morning splash pad at eye level: a ring of flush ground sprays, a 304 stainless spray post and the leg of a stainless spray arch in a row, water arcs catching the sun, children running in the distance

Splash Pad EquipmentWater Play Features, Spray Grounds and Aquatic Play Structures

Send Your Pad Dimensions Where our scope ends
02/ 138 feature types · one deck line · A part numbers

Splash Pad Equipment RangeGround Sprays, Spray Posts, Arches, Buckets, Tunnels and Water Play Structures

RP-05 · Partner-built · QC inspected before loading

Splash pad equipment for the whole pad: ground sprays, spray posts, spray arches and rings, tipping buckets, spray tunnels, themed fiberglass sprayers, multi-feature water play structures and the activation bollard that starts the water.

This is the spray ground equipment and water play equipment that parks departments, HOA communities, resorts and their dealers build around.

The features are 304 stainless steel and fiberglass, with spray nozzles on stainless manifolds, made by audited partner factories and inspected by our QC before loading. Water play range RP-05 carries an A part number on every feature, such as A1-006.

  • 01 · Ground spraysA1-003

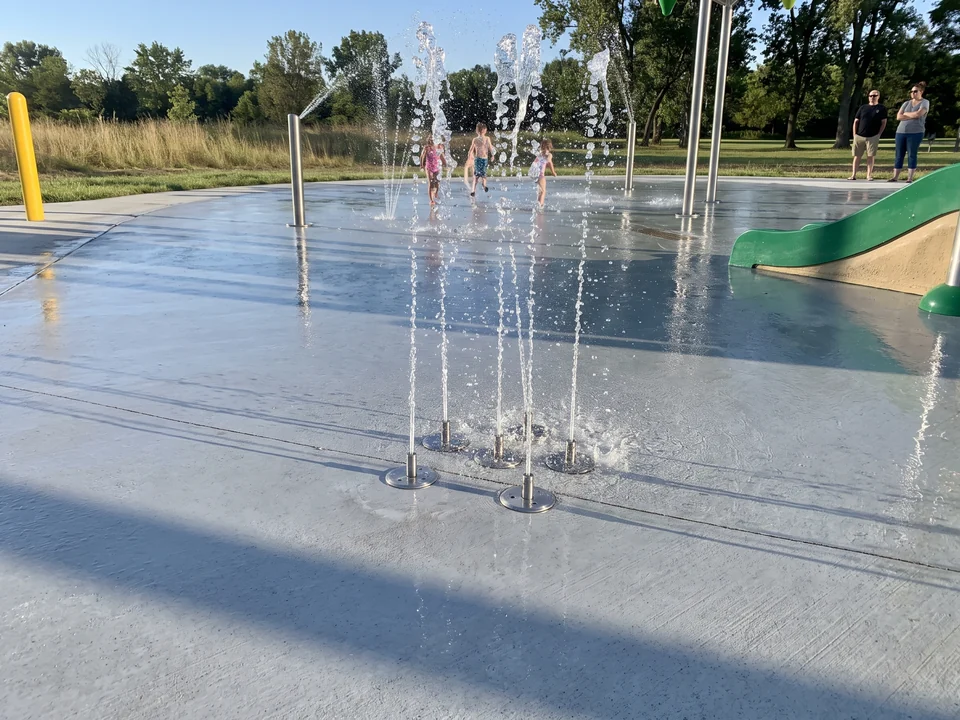

    Flush ground spray nozzles set in a concrete splash pad throwing straight jets of water

    Ground sprays

    Nozzles set flush in the pad, spraying up from the deck. The quietest pieces on the pad and the usual choice for toddler zones and pad edges.

    304 stainlessFlush
  • 02 · Spray postsA1-006

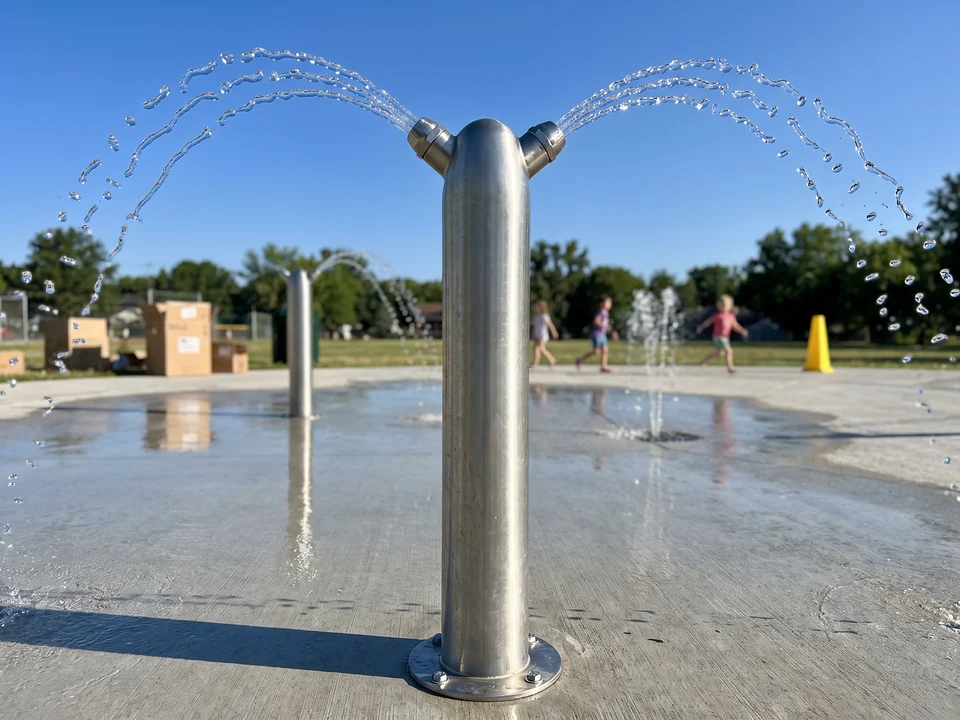

    A brushed 304 stainless spray post on its base plate throwing water arcs from two nozzles at the top

    Spray posts and bollards

    Upright 304 stainless posts with one or more nozzles, placed singly or in rows.

    304 stainlessOn a flange
  • 03 · Arches and ringsA1-004

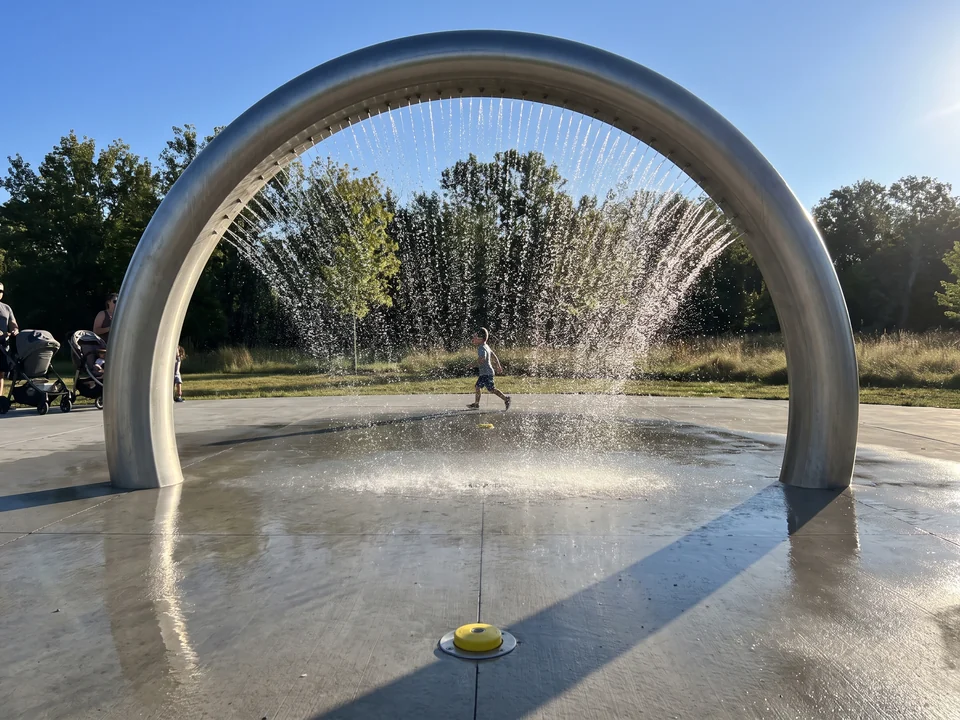

    A stainless spray arch dropping a curtain of water from a line of nozzles

    Spray arches and rings

    Stainless arches and rings that children run under and through.

    304 stainlessTwo flanges
  • 04 · Tipping bucketsA1-005

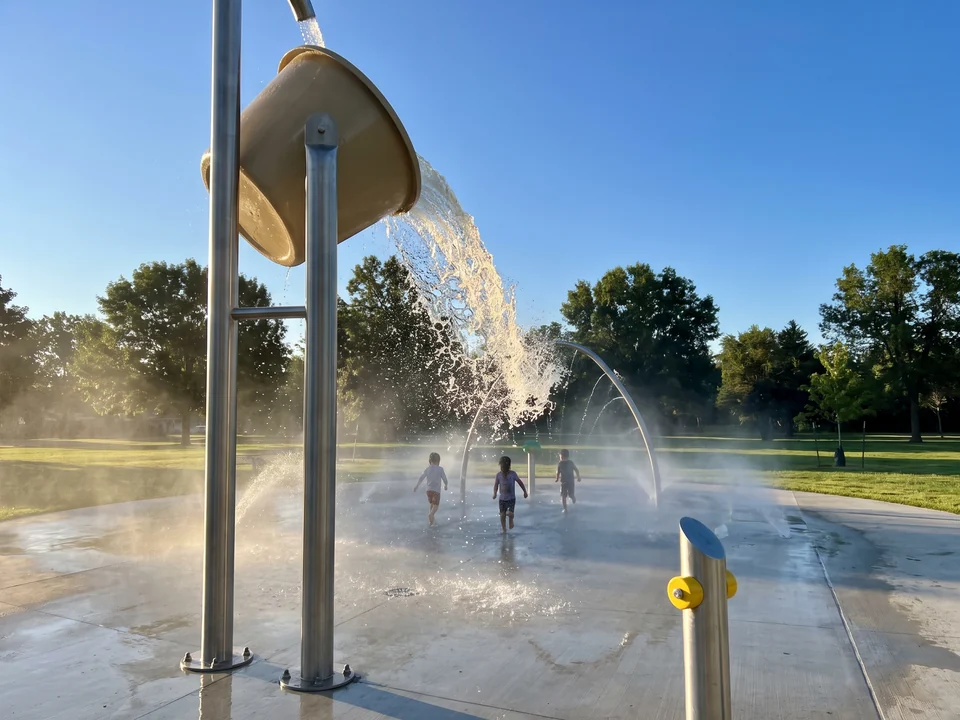

    A tipping bucket on a stainless post spilling water, lit from behind

    Tipping buckets

    Buckets that fill and tip over the children below, mounted on posts or on a water play structure.

    304 + fiberglassOn a post
  • 05 · Spray tunnelsA1-002

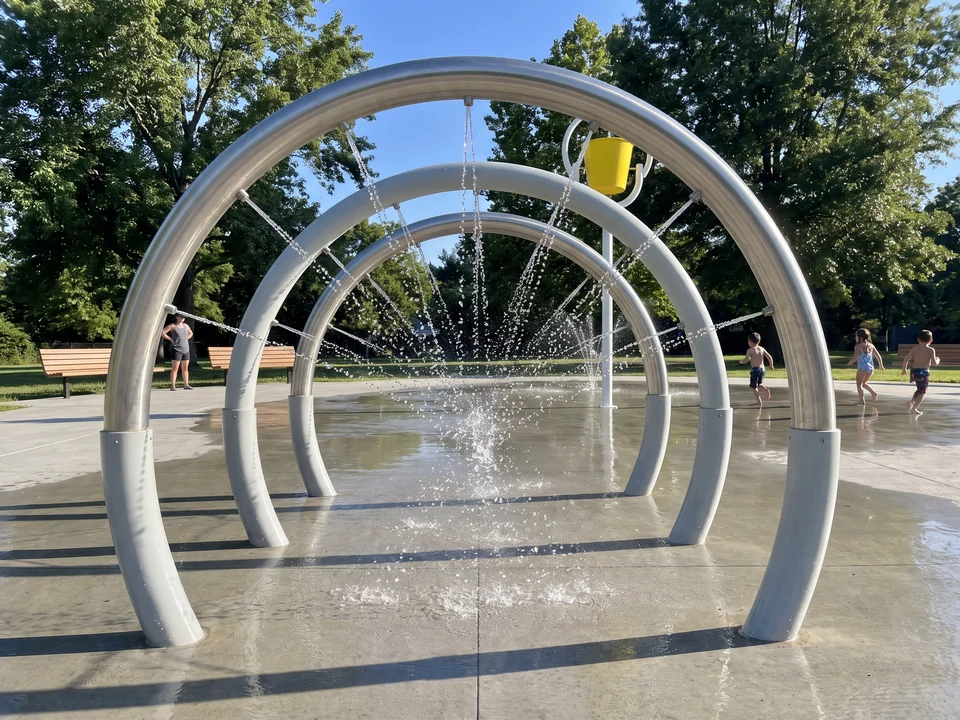

    A spray tunnel made of three stainless arches with a line of fine nozzles along the inside

    Spray tunnels

    A run of arches with nozzles along the inside.

    304 stainlessA run of arches
  • 06 · Themed sprayersA1-001

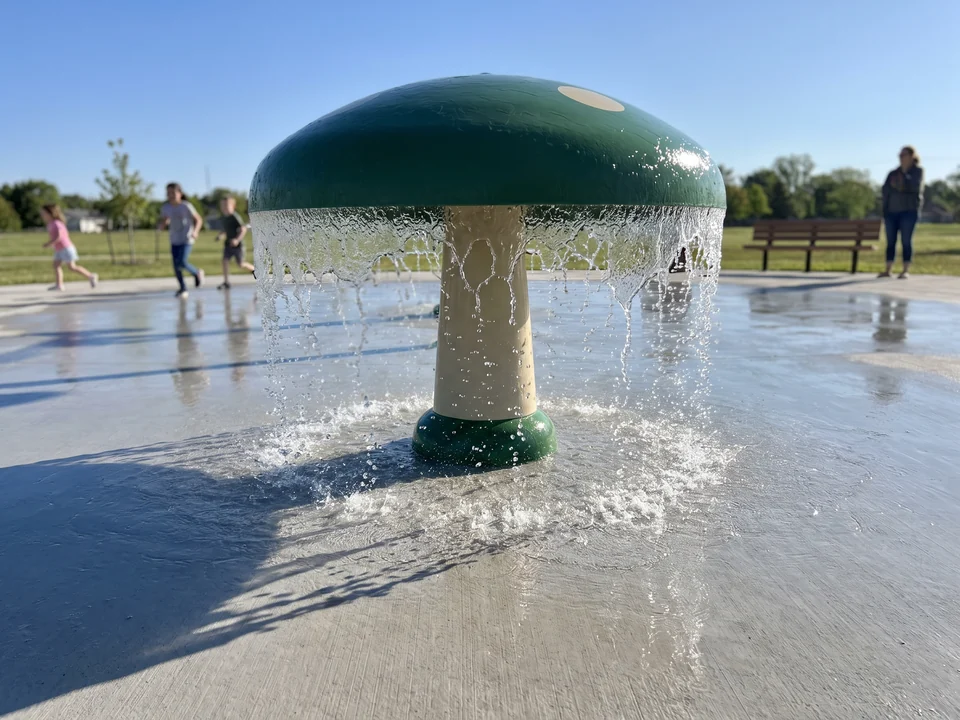

    A realistic two-color fiberglass mushroom sprayer on a splash pad with water falling from the cap edge

    Themed fiberglass sprayers

    Animals, flowers, mushrooms and other shapes with nozzles built in, matched to the theme you give us.

    FiberglassYour theme
  • 07 · Water play structuresA1-007

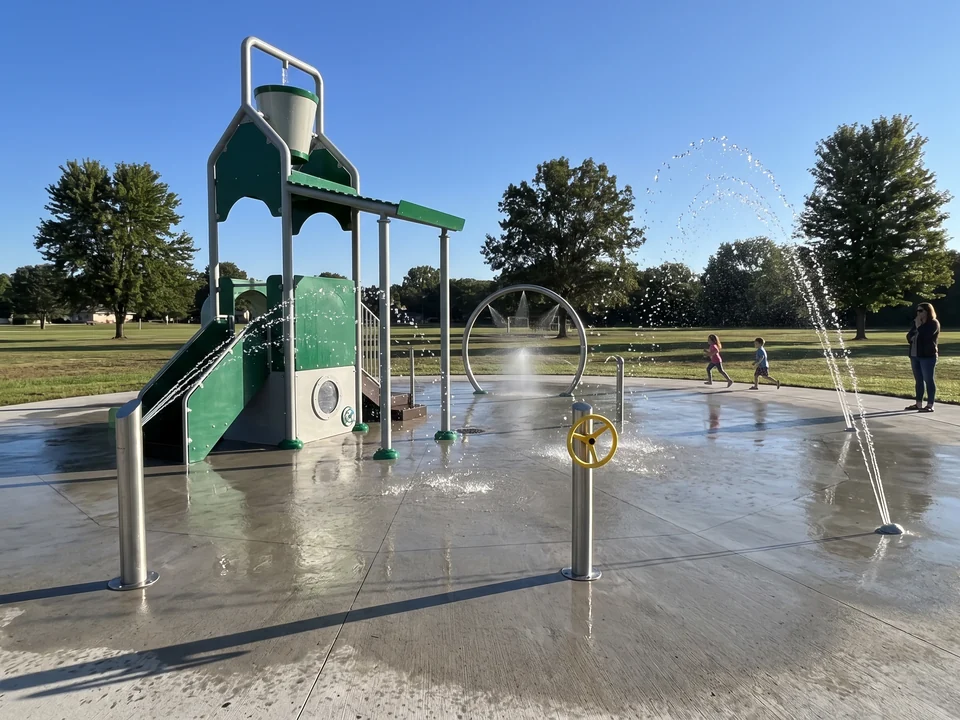

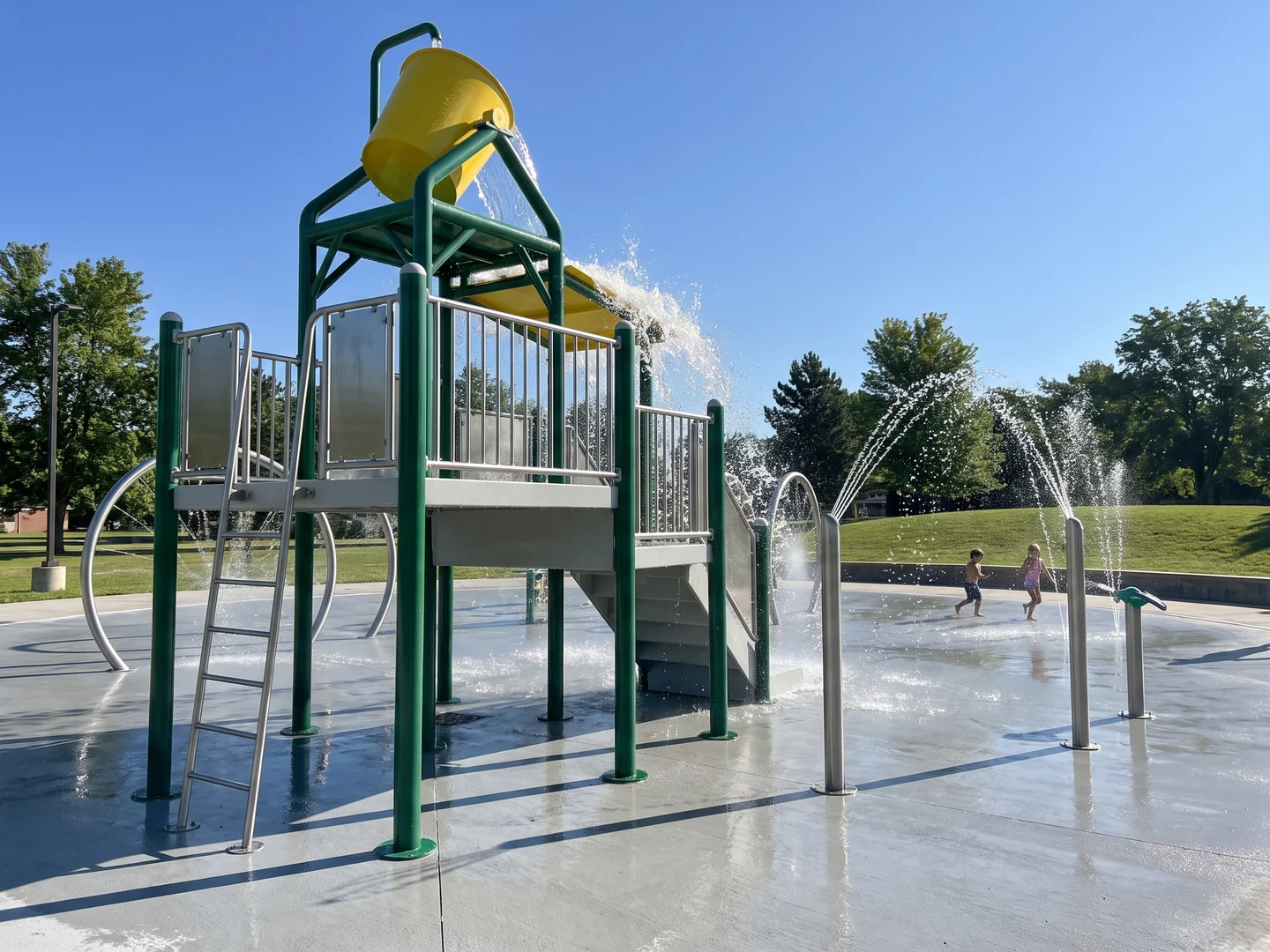

    A multi-feature water play structure with an evergreen fiberglass frame, a tipping bucket and a platform

    Multi-feature water play structures

    A stainless or fiberglass frame carrying buckets and sprays, with climbing decks on larger structures.

    304 + fiberglassTrial-assembled
  • 08 · Activation bollardA1-008

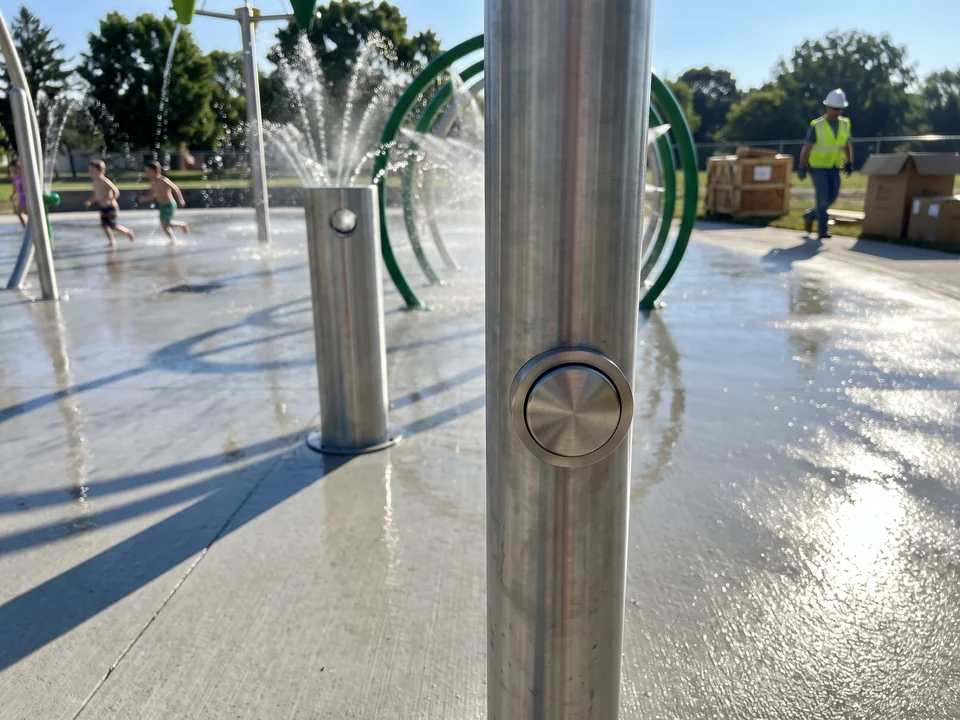

    Close view of a stainless activation bollard with its push button at the edge of a splash pad

    Activation bollard

    Push-button or motion sensor, the one piece children touch to start a cycle. The is wired back to your contractor's controller.

    Push-buttonMotion sensor
Activation bollardThe post at the pad edge with a button or motion sensor. Pressing it tells the controller in your water contractor's plant room to run a spray cycle.
03/ 134 site types · same 6 design inputs

Splash Pad Features for Parks, Communities, Resorts and Dealer Projects

The mix of features changes with the site. The drawings, the flanges and the scope line under every feature stay the same.

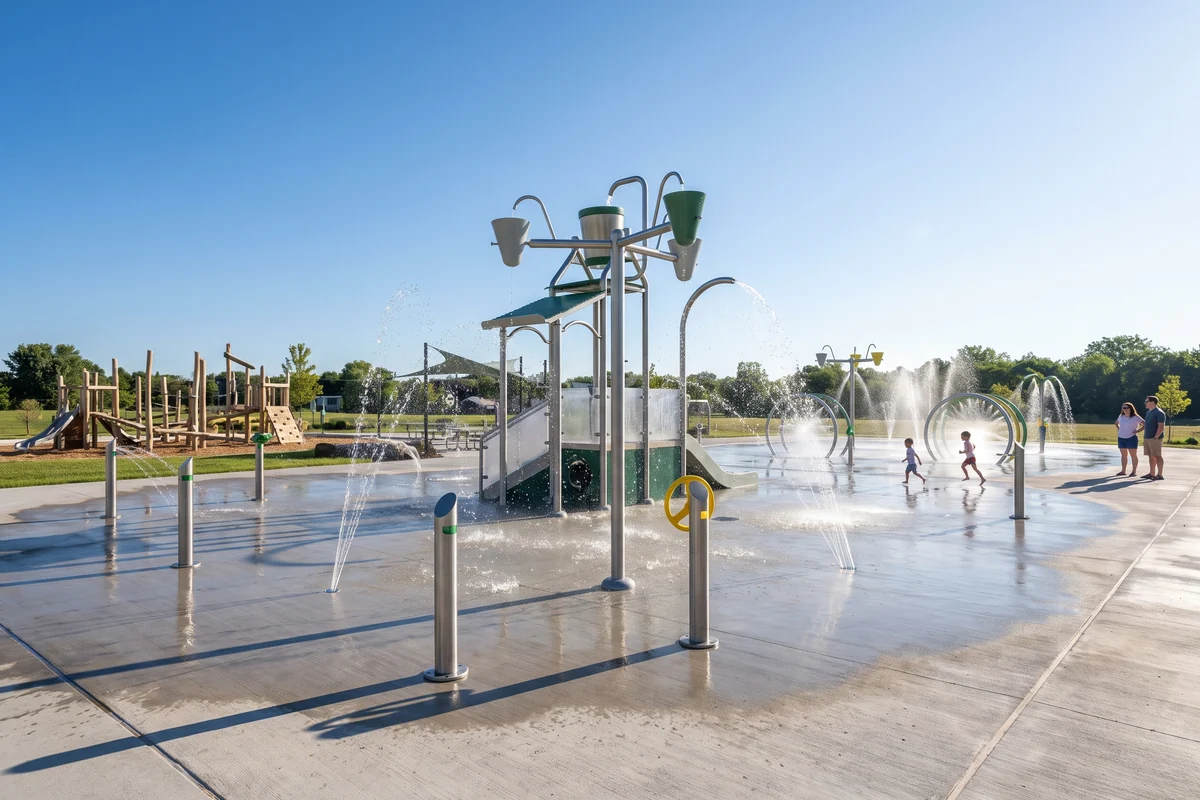

  • A large park splash pad with a field of ground sprays, spray posts and a water play structure, the dry playground beyond

    Parks departments

    A park pad usually mixes ground sprays across the open deck, spray posts and arches at mid height, and one water play structure as the focal point, with a separate toddler zone. The pad sits next to the dry playground on the same site plan. Park projects are covered on park playground equipment.

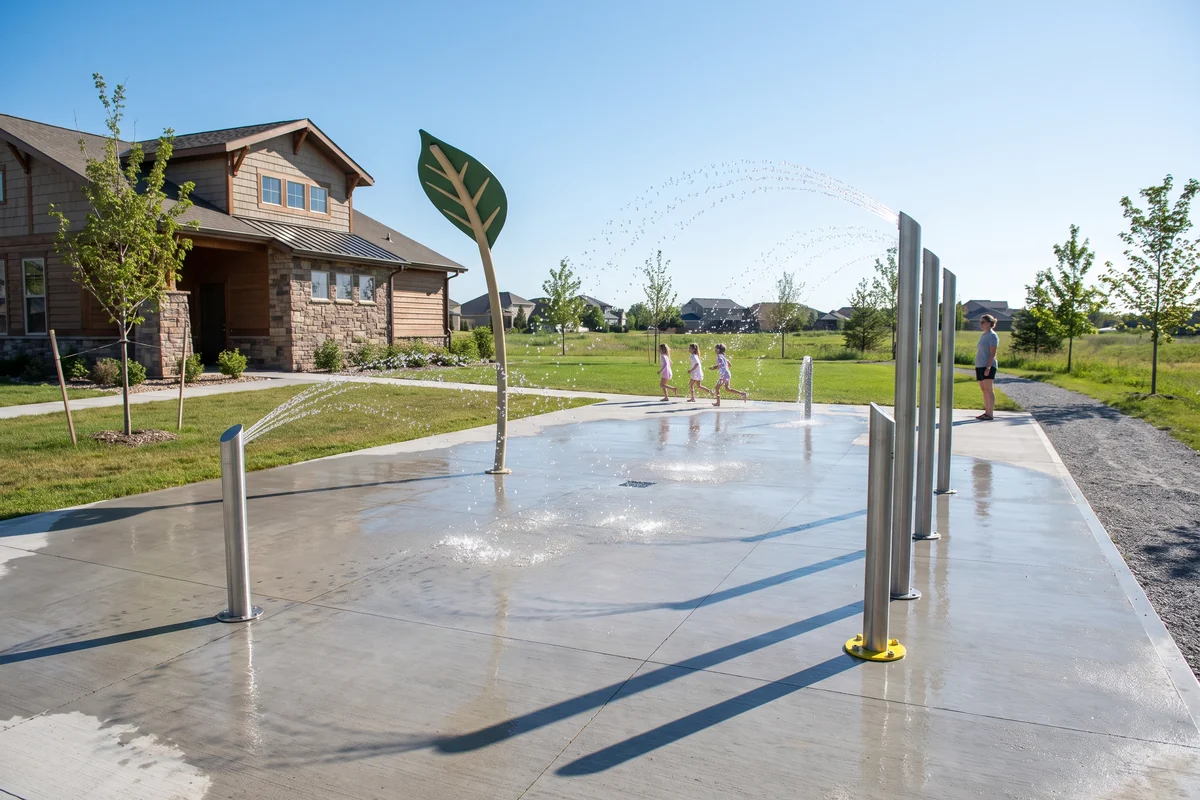

  • A compact community splash pad beside a clubhouse with ground sprays, three spray posts and a themed sprayer

    HOA and residential communities

    Community pads are often smaller and sit near the pool or the clubhouse. Ground sprays, a few spray posts, a themed sprayer and an activation bollard give a compact pad that the community's pool contractor can connect to the existing plant room. More on community and HOA playgrounds.

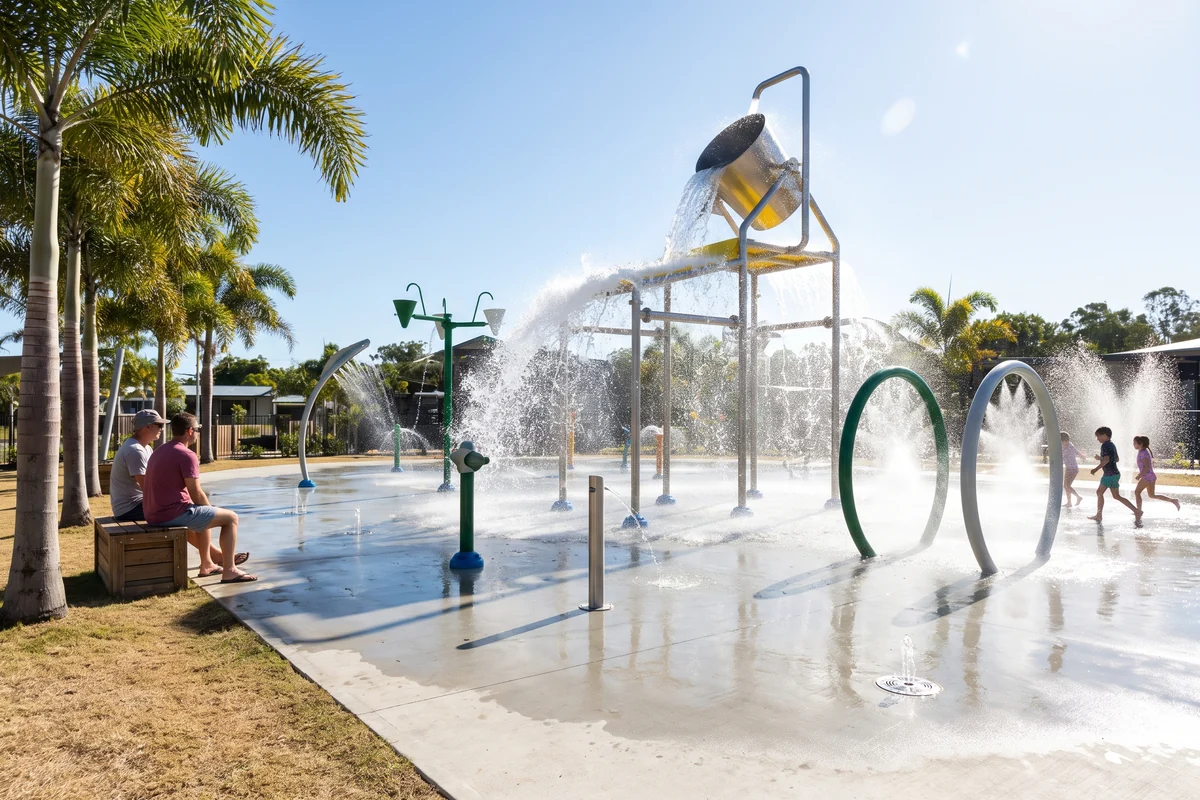

  • A resort splash pad with themed fiberglass sprayers and a water play structure whose tipping bucket stands at the most visible spot

    Resorts and hotels

    Themed fiberglass sprayers and a water play structure in the resort's colors and theme, with tipping buckets for the most visible spot on the pad.

  • A dealer at a desk comparing a render with a quotation

    Dealers and installers

    You receive layouts, renders and quotation files unbranded or under your brand, and the project is registered under your name. Dealer terms are on wholesale playground equipment.

On any site, the design inputs are the same.

  • Pad dimensions
  • Age groups
  • Expected visitors
  • Theme
  • Budget range
  • Standard
04/ 13Two halves · one line · every connection point marked

Scope of SupplyFeatures and Drawings From Us, Water System by Your Water Contractor

A splash pad has two halves. The water play features and the drawings come from us. Your water or pool contractor designs and builds the water system to your local code.

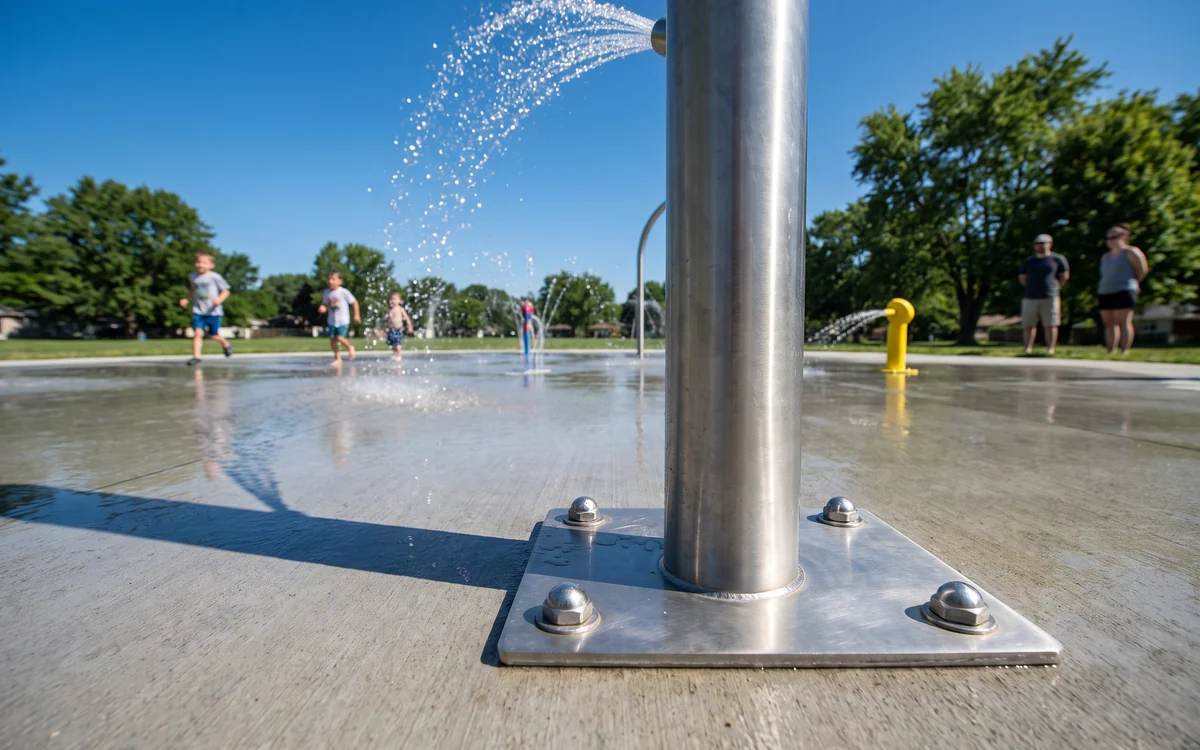

An installed stainless spray post on a splash pad, its base plate flush with the deck and the tamper-resistant bolt caps clearFrom us

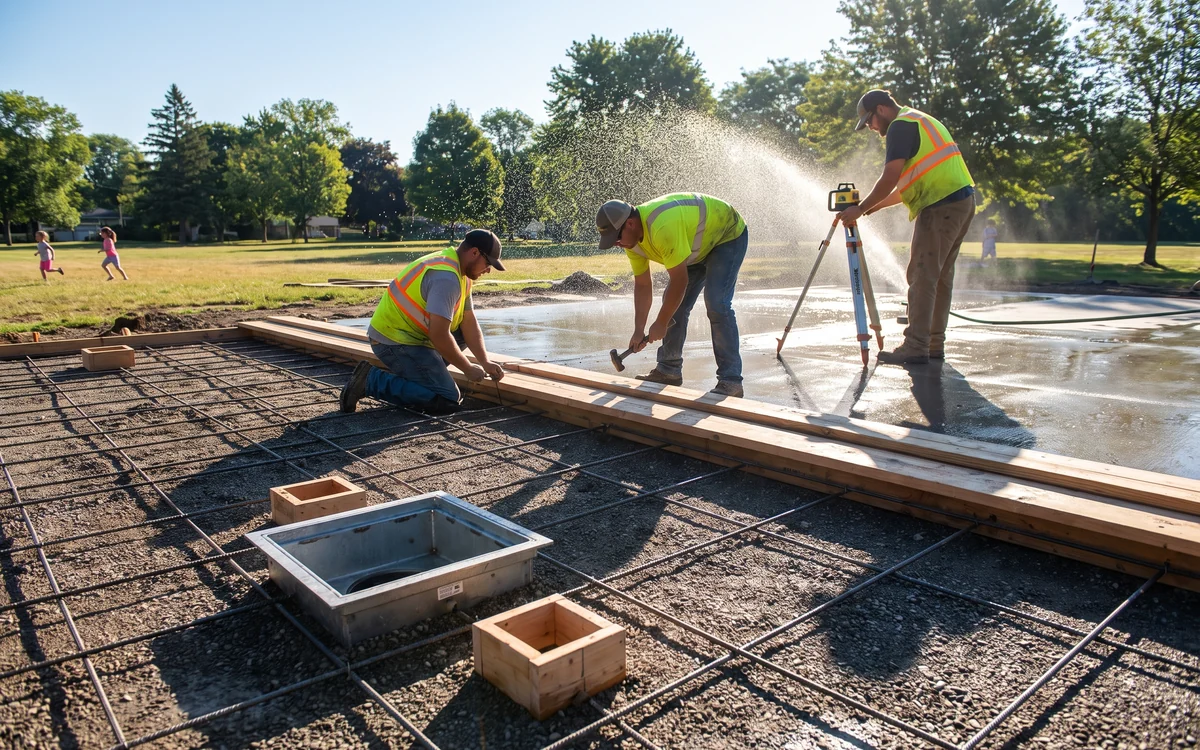

A local contractor crew setting formwork, rebar, the floor drain and flange box-outs for a splash pad deck before the pourFrom your water / pool contractor

Swipe the drawing →

SectionSplash pad
Scope lineAt each connection point
AboveFrom us
BelowYour water / pool contractor

Swipe the table → your contractor

Part of the padFrom usFrom your water / pool contractor
FeaturesSpray features, water play structures, activation bollardFrom us
DrawingsPad layout, mounting detail per feature, water connection point per featureWater system design to local code
DataPartner factory data sheet for each feature, with the quotationPump, piping and treatment sizing from those sheets
In the padAnchor flanges and base plates (shipped ahead by air courier), 304 tamper-resistant fastenersConcrete pad deck and its finish, pad falls and drains
Water systemBy your water contractorPumps, filtration, treatment, controller, solenoid valves, piping, plant room
ActivationBollard wired back to the plant roomController that runs the spray cycles
WinterMaintenance guide for the features: nozzle care and cleaningWinter drain-down of the system
Health and permitsBy your water contractorLocal health rules, inspections and permits

Your contractor works from one drawing set that already fixes where every feature stands and where its water arrives. Their drain points and plant room position are marked back onto our layout.

Excavation, the concrete pad and installation labor are with the buyer's local team, as on the rest of the site; see playground equipment installation.

One drawing set for your contractor
  • Pad layout · every feature placed
  • Mounting detail · one per feature
  • Data sheet · one per feature
  • ← Your drain points and plant room · marked back on the layout

Every feature on the pad has a mounting detailand a marked water connection point before your contractor starts the pad.

  • Mounting detailA1-006
  • Connection pointMarked
  • PadNot yet poured
05/ 13One site plan · playground, shade, surfacing and the pad

Splash Pad Layout DrawingFeature Positions, Age Zones, Dry Edge and Drain Points

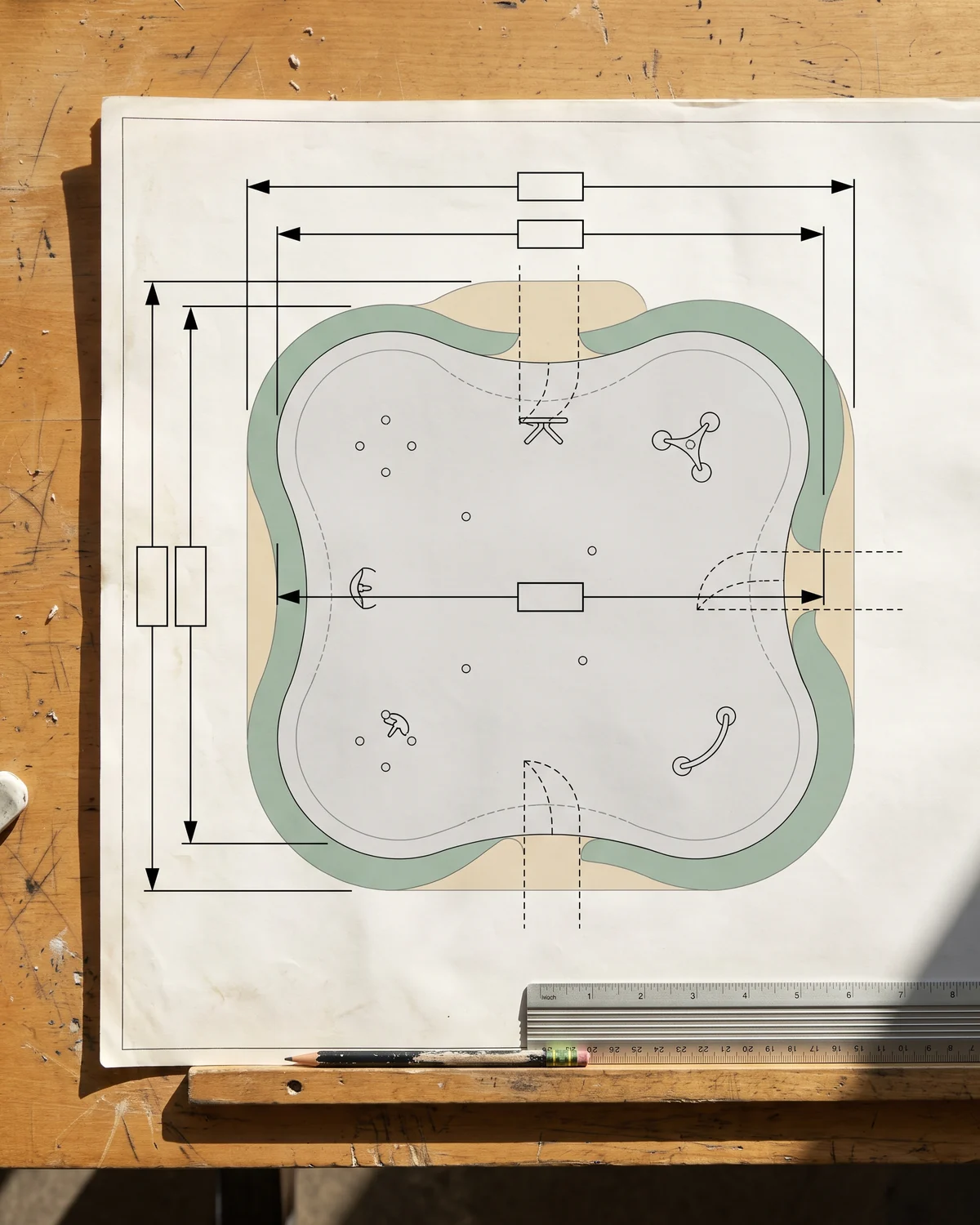

The design office draws the splash pad in the 2D and 3D layout returned within 3 working days of your site plan, on the same site plan as the playground, shade and surfacing.

The design office places every feature on your pad layout, sets the age zones and the dry edge, and marks the drain points your water engineer sends us.

Layout revision
LayoutSplash pad
RevB · drains + plant roomA · features + zones
Zones6–23 mo + 2–5 · 5–12
NumbersSame A numbers
  1. 07

    Changes

    If the landscape architect moves the pad or the contractor moves a drain, the features are redrawn and the mounting details reissued with the same A numbers. The layout process is described on playground layout design.

  1. 01

    Feature positions

    Every feature is drawn at its position on the pad with its A number, so the layout, the mounting details, the data sheets and the packing list all use the same labels.

  2. 02

    Age zones

    A toddler zone for children from 6 to 23 months and the 2–5 age group, with ground sprays and low sprayers, and an area for the 5–12 group with arches, tunnels, buckets and the water play structure. Younger children play away from the tipping buckets.

  3. 03

    Dry edge

    A around the pad for seating, parents and staff, with shade where you want it and the dry play surfacing outside the wet area.

  4. 04

    Activation bollard position

    At the pad edge, where children reach it from the pad and staff can see it.

  5. 05

    Drain points · your water engineer → marked by us

    Your water engineer designs the pad falls and drains. When they send us the drain positions, we mark them on the next layout revision, so feature positions and drains are checked against each other on one drawing before approval.

  6. 06

    Plant room

    The plant room position from your contractor is marked on the site plan, with the bollard wiring route back to it.

Dry edgeThe band around the wet pad that stays dry: seating, shade and space for parents and staff, with the dry play surfacing beyond it.

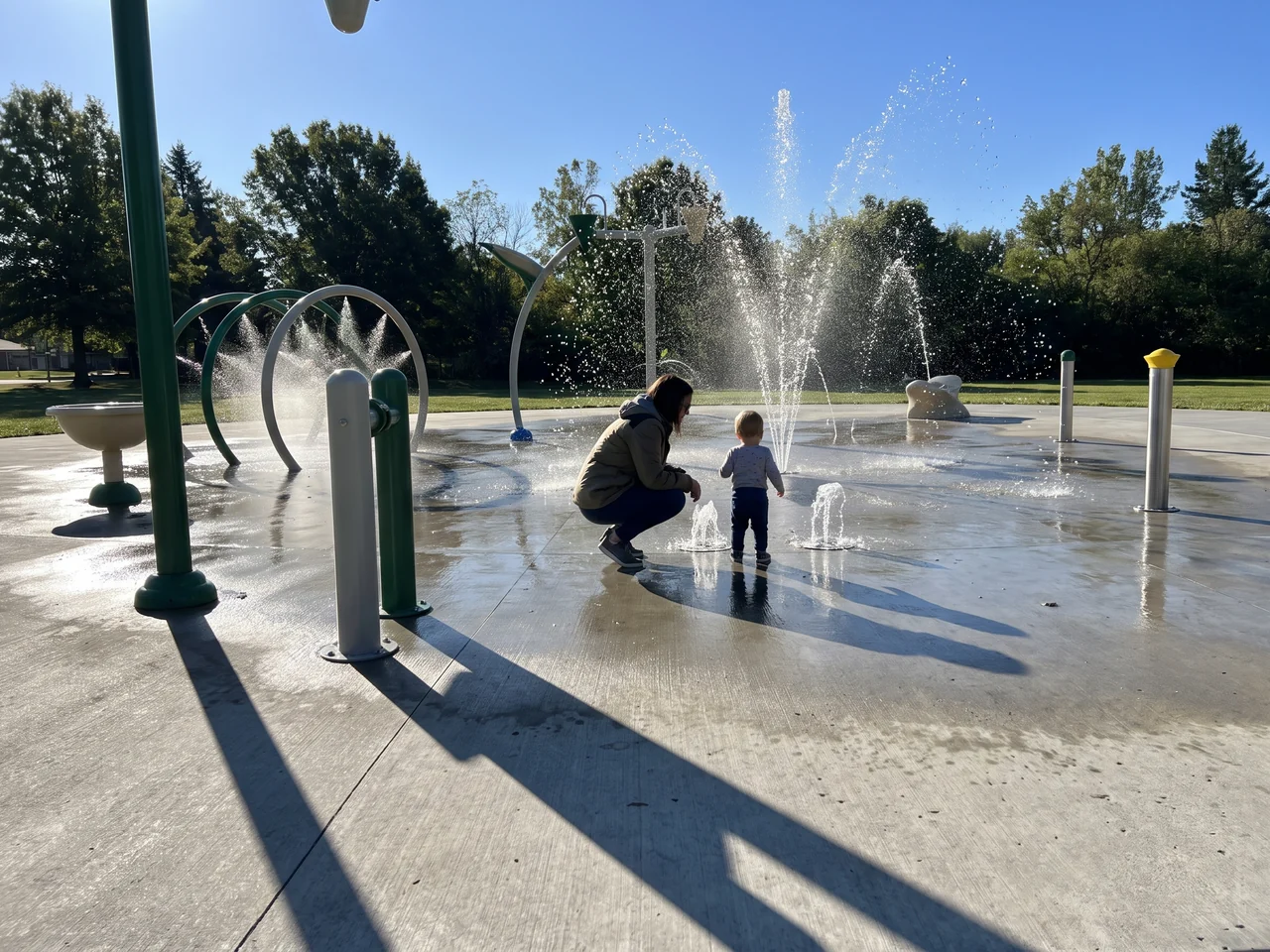

  • A toddler zone with low ground sprays, a small child and a crouching parent in the distance
    Toddler zone · ground sprays and low sprayers

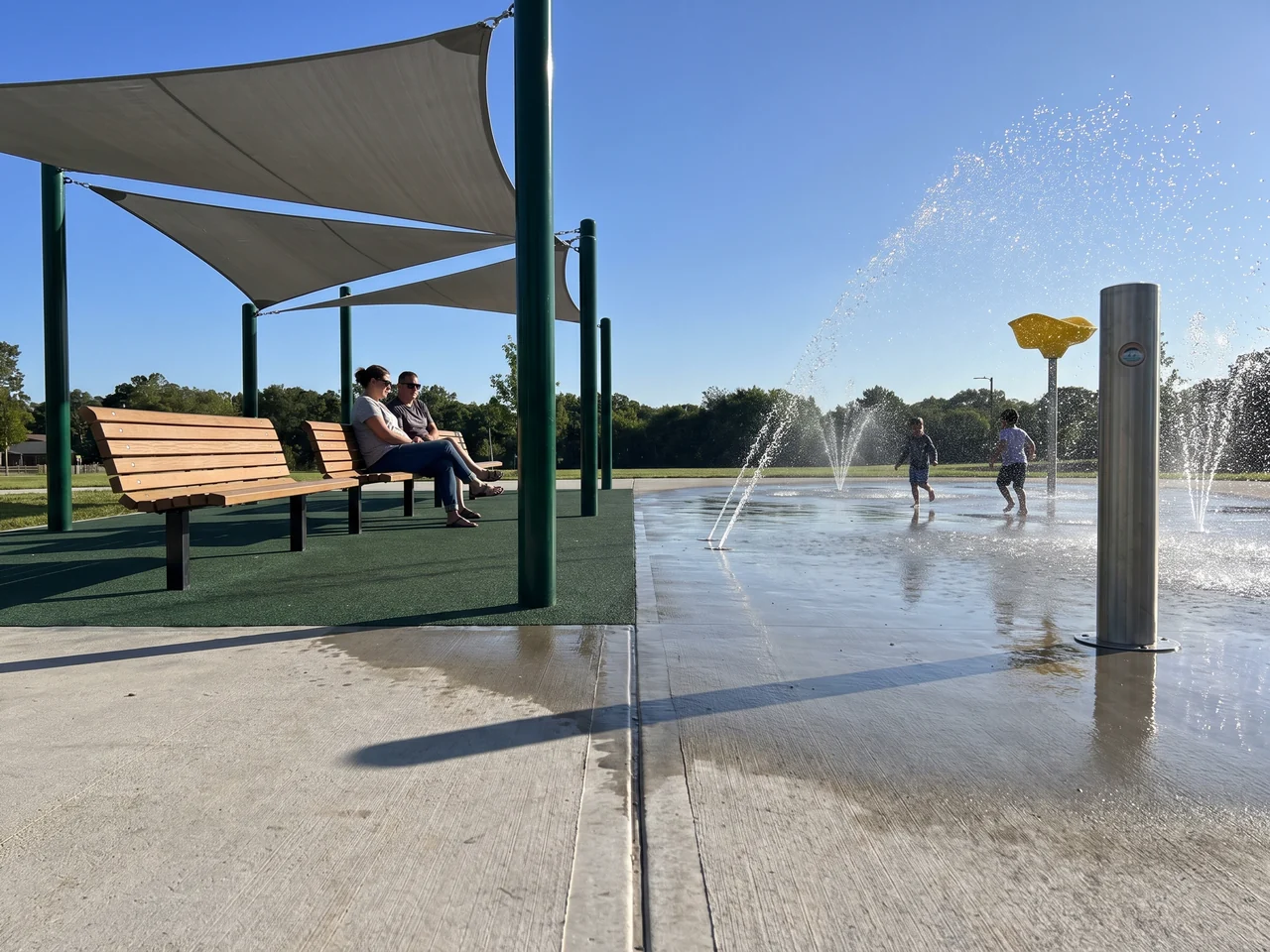

  • The dry edge of a splash pad: benches under a shade sail beside the wet pad, with rubber play surfacing beyond
    Dry edge · seating and shade
06/ 13One detail per feature · one marked connection point

Mounting Details and Water Connection PointsAnchor Flanges, Supply Points and Activation Bollards

The design office issues a mounting detail for every feature on your pad. This is the drawing your water contractor and concrete crew build to.

Each feature gets its own mounting detail: the anchor flange cast into the concrete pad, the 304 tamper-resistant fasteners, and the marked point where its water supply connects to the base.

With the quotation come the partner factory's data sheets for each feature, so your contractor can size pumps, piping and treatment around the features you chose.

Mounting detailA1-006 spray post
FlangeCast into the pad
Fasteners304 tamper-resistant
06 · IssuedWith the approved drawing
  1. 06

    Timing

    Mounting details are issued with the approved drawing and reach your contractor during production, and the anchor flanges and base plates go ahead by air courier, so the pad, flanges and supply lines can be built before the container arrives.

  1. 01

    Anchor flange or base plate

    Each feature fixes to an anchor flange or base plate cast into the concrete pad. The mounting detail shows the flange position on the pad grid, its orientation and its level relative to the finished deck, so ground sprays finish flush and posts stand plumb.

  2. 02

    Fasteners

    Features bolt to the flange with 304 stainless , the same fastener family as our play structures. The fasteners ship in the kit, and the security bits come in the spare hardware kit.

  3. 03

    Water connection point

    The point where each feature's water supply connects to its base is marked on the mounting detail. Your contractor runs the supply line to that point, so every feature has a known connection position before the pad is poured.

    Line sizes and fittings come from your contractor's system design and the feature data sheet.

  4. 04

    Feature data sheets

    With the quotation, the partner factory's for each feature comes to you and your water contractor. The sheet is labeled with the feature's A number, so your contractor sizes pumps, piping and treatment for the exact features on your layout.

  5. 05

    Activation bollard

    The bollard fixes to its own flange at the pad edge. Its detail marks where the cable enters the base, and the cable runs back to the controller in your contractor's plant room, which runs the spray cycles.

Tamper-resistant fastenerA 304 stainless bolt whose head needs a matching security bit, so the feature cannot be taken off the flange with an ordinary tool.
Data sheetThe partner factory's sheet for one feature, labeled with its A number. Your water contractor uses it to size the system around that feature.

What you receive: a pad layout, one mounting detail per feature, one data sheet per feature, and part numbers that match all three.

  1. Approved drawing
  2. Mounting details issued · flanges and base plates by air courier
  3. 20–30 days of production · your pad, flanges and supply lines built
  4. Container arrives · features bolt on

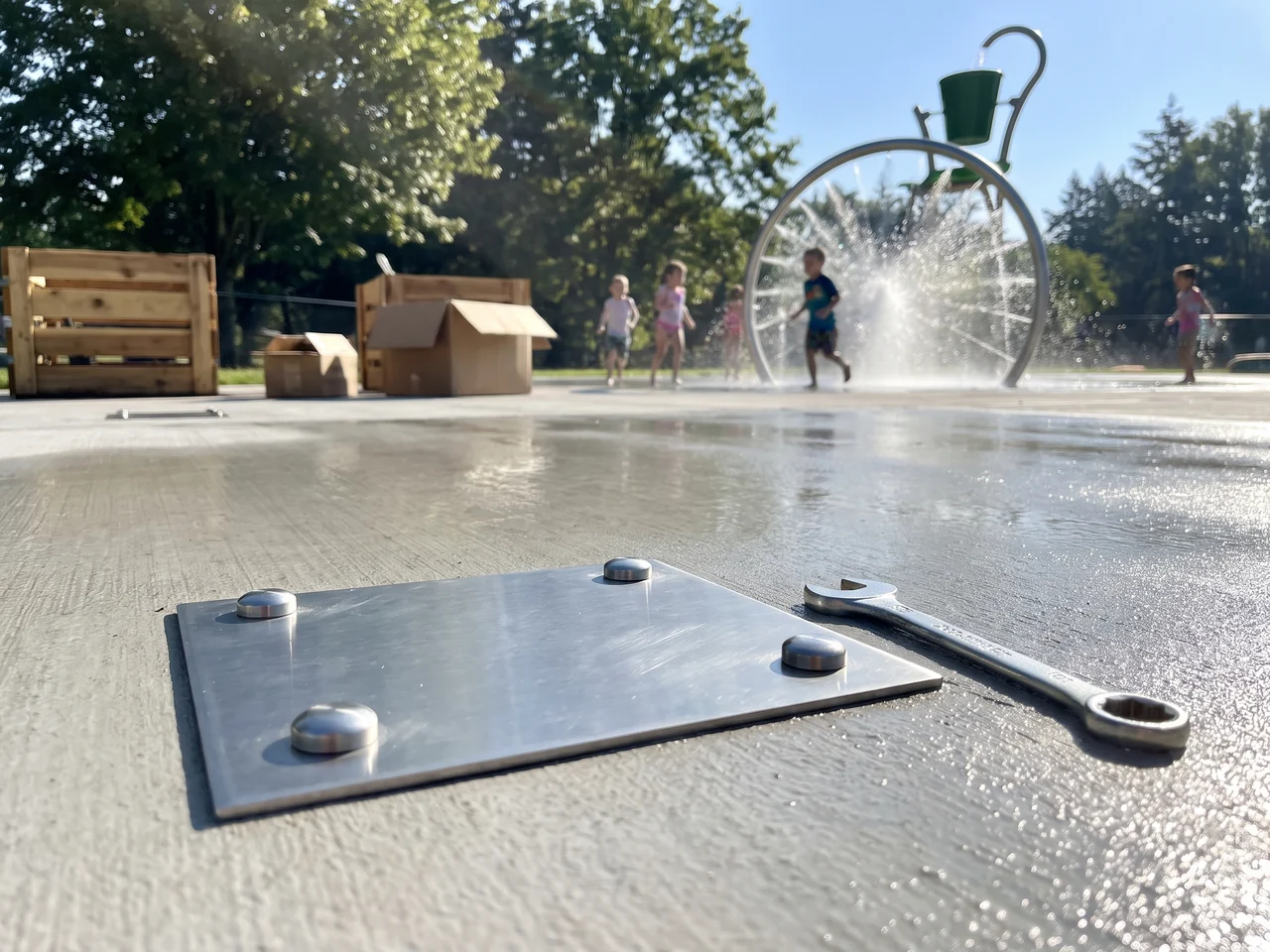

  • A stainless base plate set flush in a newly poured pad with four tamper-resistant bolt caps and a security-bit wrench beside it
    Flange cast into the pad

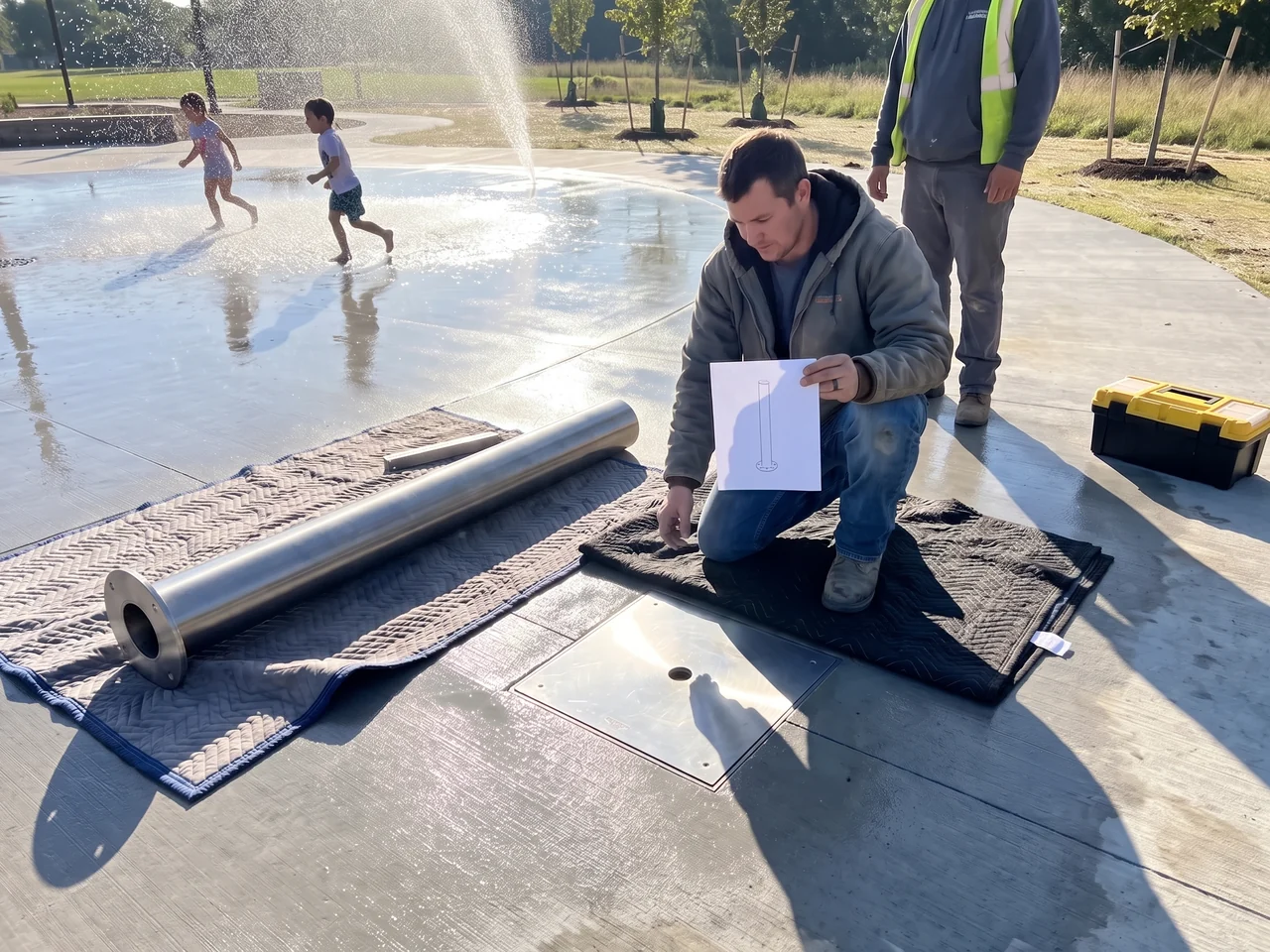

  • An installer on the new pad deck checking the feature data sheet beside a flush base plate, the stainless spray post waiting on blankets
    Data sheet on site
07/ 13304 stainless · fiberglass · nozzles on stainless manifolds

Feature Construction304 Stainless Steel, Fiberglass and Nozzles on Stainless Manifolds

Splash pad features are built by partner factories that joined our program after a factory audit and sample approval. Inside each feature, nozzles are fixed to a stainless that distributes the water from the supply connection to every nozzle.

ManifoldThe stainless pipe inside a feature that takes water from the one supply connection and splits it to every nozzle. Each one is leak-tested before the feature is closed.
A1-006 spray post · X-ray view · mounting detail ↑

  • 304 stainless steel

    Spray posts, arches, rings, tunnels, bucket supports and structure frames are 304 stainless steel, the same grade as the fasteners across our play equipment. The stainless parts carry a 304 marking that our QC checks at incoming inspection.

  • Fiberglass

    Themed sprayers and fiberglass structure parts are molded by the partner factory, with surfaces and edges checked by our QC before loading.

  • Nozzles on stainless manifolds

    Each manifold distributes the water from the supply connection to every nozzle and is leak-tested at the partner factory before the feature is closed up.

  • Nozzles as wear parts

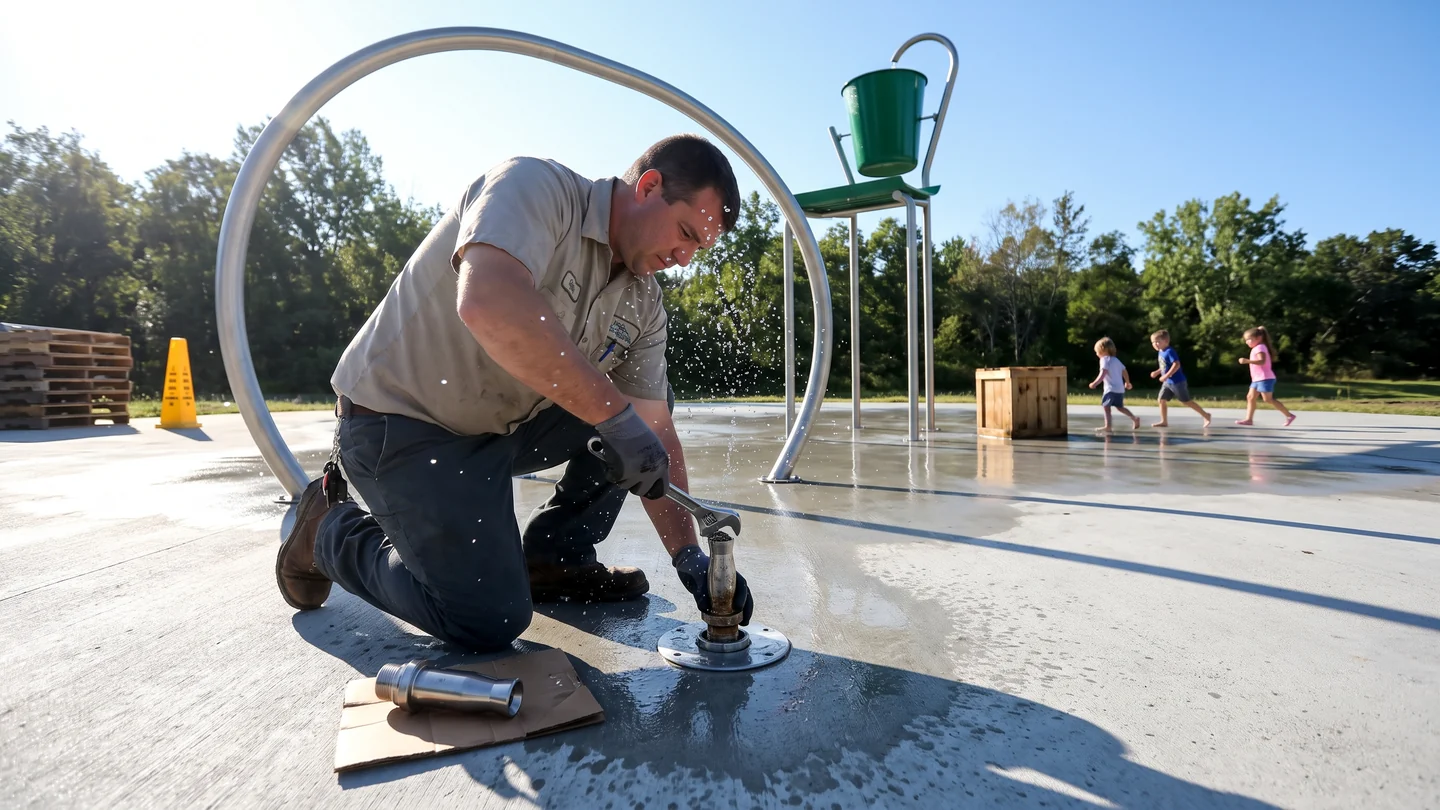

    Nozzles are the parts a site replaces. Each carries a part number, such as A1-031, so a replacement is remade to that number.

  • Tipping buckets

    Buckets are mounted on stainless supports and fill from the feature's manifold.

  • Theme

    Fiberglass shapes follow the theme you give us at the layout stage and are drawn in the 3D render before approval. Themed fiberglass pieces add cost; how that shows in a quotation is on playground equipment cost.

08/ 13Same checks as our dry structures

Water Play Structures With Climbing DecksDrawn to ASTM F1487 or EN 1176

Larger multi-feature water play structures carry climbing decks, steps and platforms with buckets and sprays around them.

A multi-feature water play structure with an evergreen fiberglass frame, light grey platforms, a ladder and a large tipping bucket, two children running on the pad beyond
  • USA
  • UK · EU · Australia

Climbing parts

The climbing decks on water play structures are drawn to the play-structure standard named for your project: ASTM F1487 for the USA, EN 1176 for the UK, EU and Australia.

The same checks apply as on our dry structures: head- and finger-entrapment gaps, protective barriers above set platform heights, and no protrusions or sharp edges.

Water quality and health rules

Water treatment and health requirements are set by your local code and handled in your contractor's system design and permits.

Your local code · your contractor's design and permits

Testing and documents

Third-party testing is arranged per project on request, and the compliance documents for your order are listed in the quotation. The standards behind our play equipment are on playground safety standards.

ASTM F1487The US standard for public playground equipment. The climbing decks on water play structures are drawn to it for US projects.
EN 1176The European playground equipment standard, used for UK, EU and Australian projects.
09/ 13Inspected by our QC · witnessed at the partner factory · filmed in our yard

QC and Trial Assembly Before Loading304 Marking, Witnessed Leak Tests and Filmed Trial Assembly

Every splash pad item is inspected by our QC before it goes into your container.

Before loading, our QC checks the 304 marking on the stainless parts, the fiberglass surfaces and edges, and every feature and nozzle against your drawing. Each manifold is leak-tested at the partner factory with our QC watching.

Multi-feature water play structures are trial-assembled in our pre-assembly yard and filmed with the part numbers in frame.

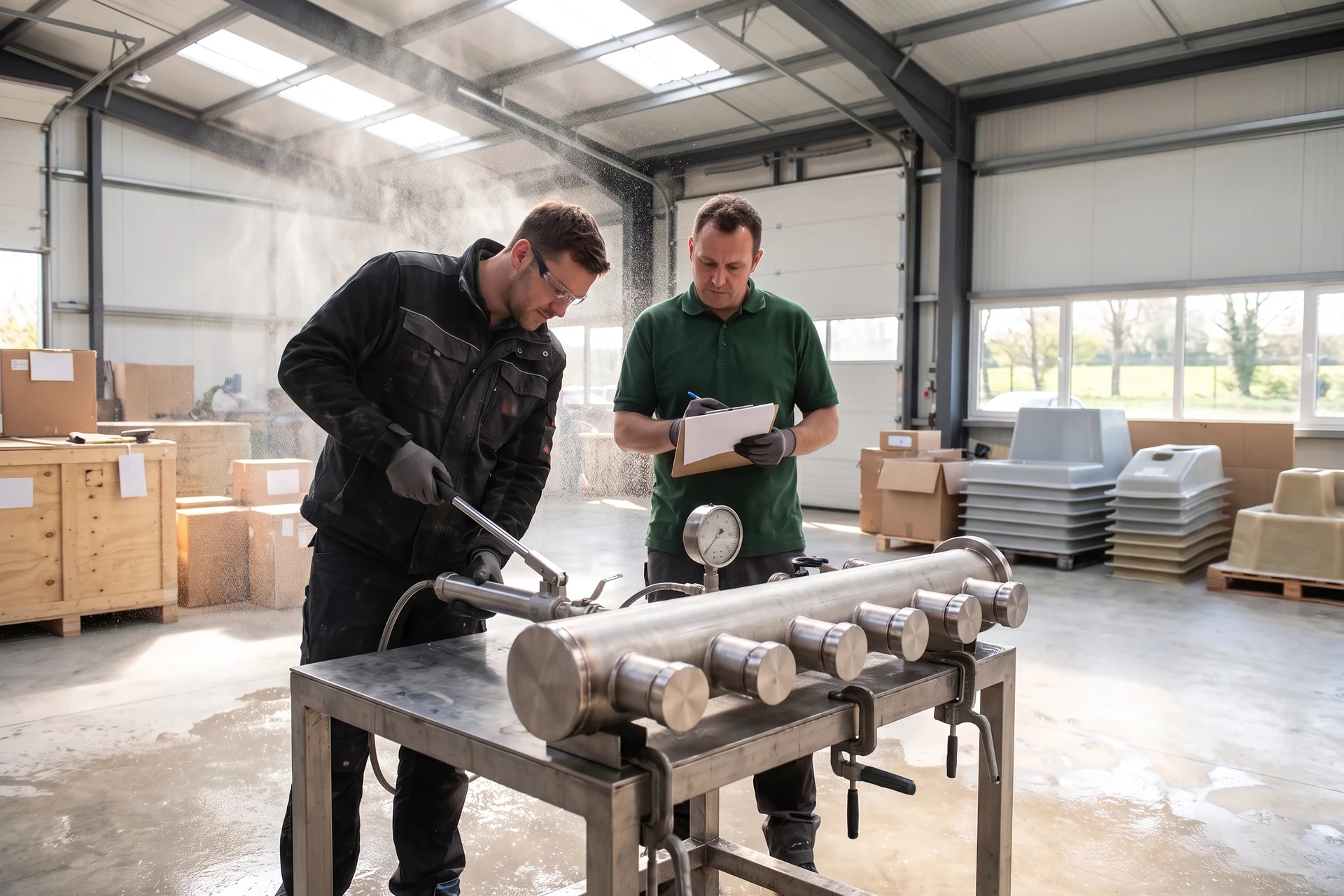

At the partner factory a technician runs a leak test on a stainless manifold with capped nozzle outlets while our QC inspector with a clipboard watches the joints
Check sequenceA1-006
  1. 304 marking · checked
  2. Manifold · leak-tested · witnessed
  3. Feature · closed up
  4. Nozzles · counted against the part list
  5. Flange plate · checked against the drawing

Manifold leak test

Each manifold is leak-tested at the partner factory with our QC present as witness, before the feature is closed.

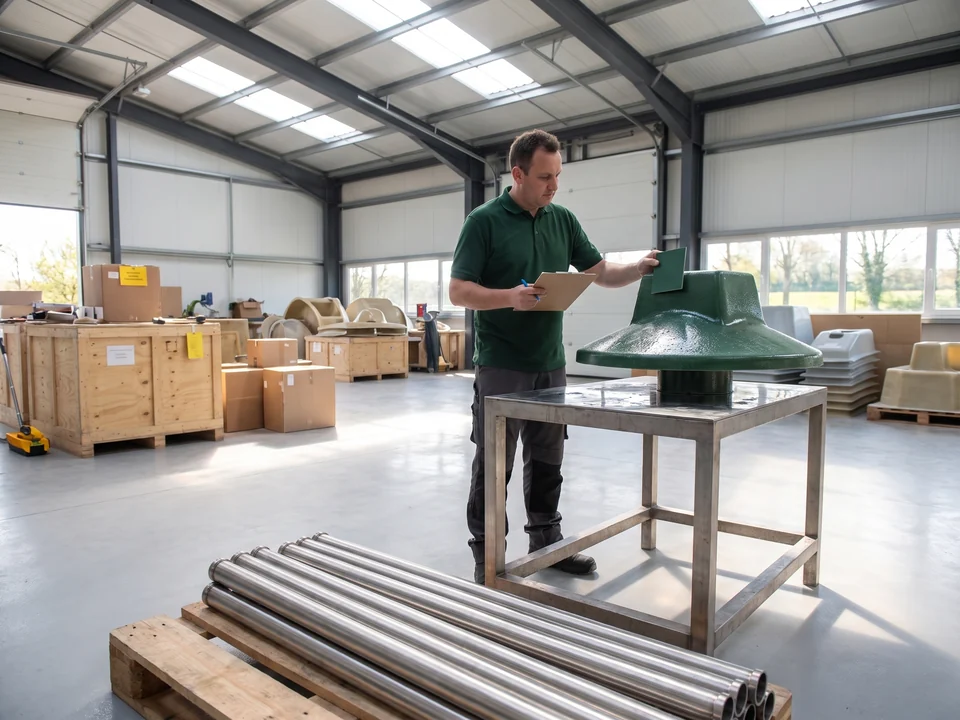

  1. Incoming check at the partner factory: our QC inspector holds the approved fiberglass sample against a sprayer cap beside stainless post tubes
    01

    Incoming check

    At the partner factory our QC checks the 304 marking on the stainless parts and the fiberglass surfaces and edges against the approved sample.

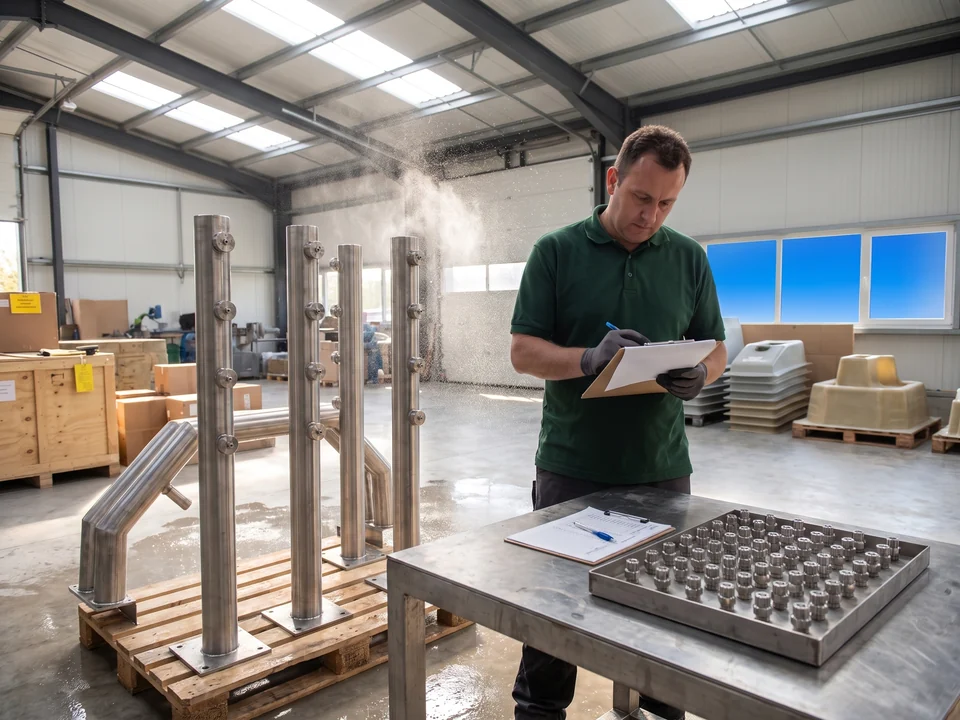

  2. A QC inspector ticking a printed part list in front of a row of spray features and a tray of nozzles
    02

    Count against the drawing

    Our QC counts every feature and every nozzle against your approved layout and the part list, so the pad arrives complete.

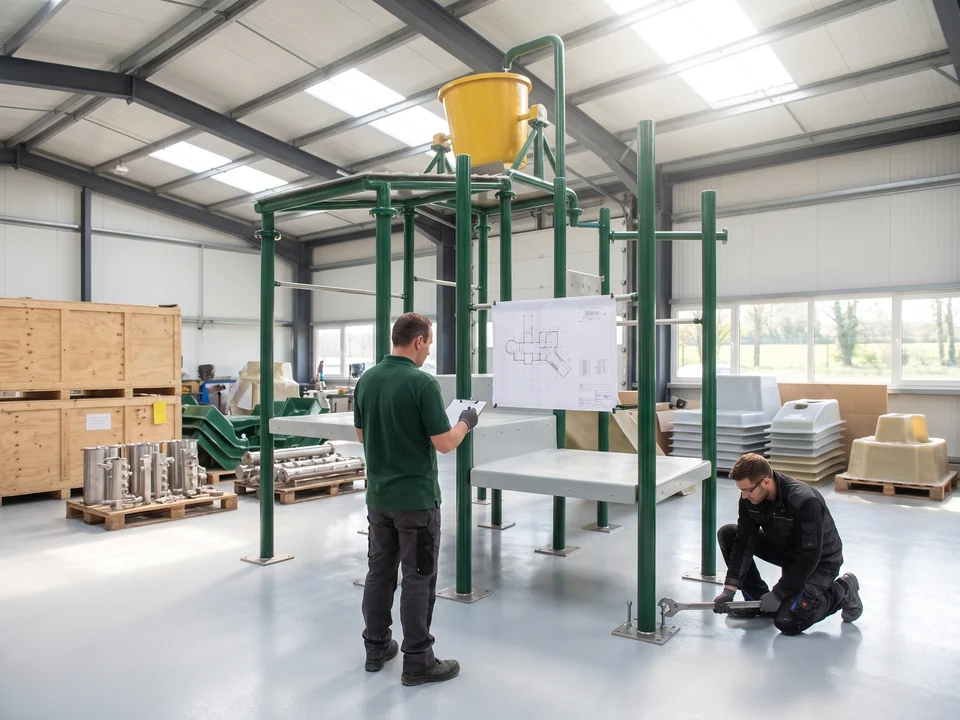

  3. Trial assembly at the partner factory: the QC inspector checks a standing water play structure against the installation drawing while a worker checks a base plate
    03

    Trial assembly

    The yard team stands the frame up to the installation drawing and checks every connection, bucket support and flange plate. A part that does not fit is corrected and refitted, and the QC team signs off before disassembly.

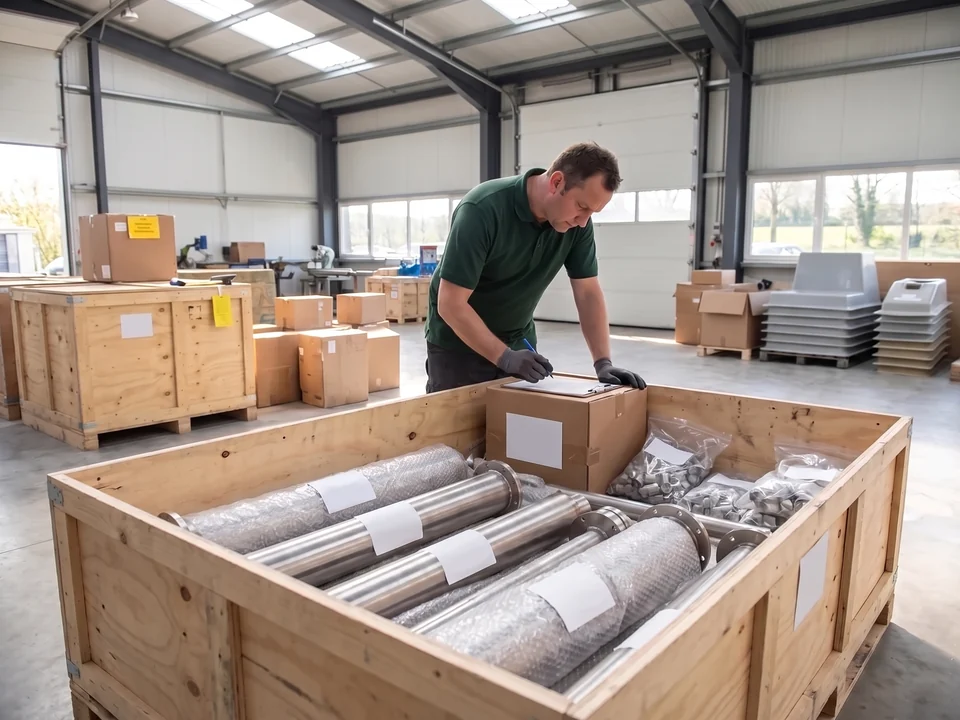

  4. Final packing check: our QC inspector ticks the packing list over an open crate of wrapped spray posts, a boxed bucket and bagged nozzles
    04

    Final packing check

    At packing, our QC checks the part list a last time, so each flange, bucket, nozzle and bollard on the list is in the crate before it closes.

  5. 05

    Failed items

    An item that fails any check is remade or replaced before it goes into the container, and the replacement goes through the same check.

The trial assembly is filmed like our outdoor pre-assembly, with part numbers in frame, and you can raise comments before packing. Single features are checked against the drawing: feature type, nozzle count, flange plate and A number.

What you receive

  • Trial-assembly video
  • Packing list · keyed to A numbers
  • Container photos · before sealing

How partner-built items move through a project: how we build playgrounds

Send the pad dimensions and your contractor's plant room position.

Pad layout · 3 working days · mounting details at approval Send Your Pad Dimensions
Splash pad · inputs
  • Pad dimensionsFrom you
  • Age groupsFrom you
  • Plant room positionFrom you
Features placed by the design office
10/ 13One site · four rings · A · H · P · S

Pad Deck, Dry Play Surfacing and Shade Around the Splash Pad

The wet pad in the middle, the dry edge around it, dry play surfacing beyond, and the rest of the playground, all on one layout.

S · STRUCTURES · W · SWINGS · F · FITNESS P · DRY PLAY SURFACING H · SHADE · DRY EDGE A · FEATURESDECK · YOUR CONTRACTOR

The rest of the site. Play structures, swings and fitness next to the pad are on commercial playground equipment.

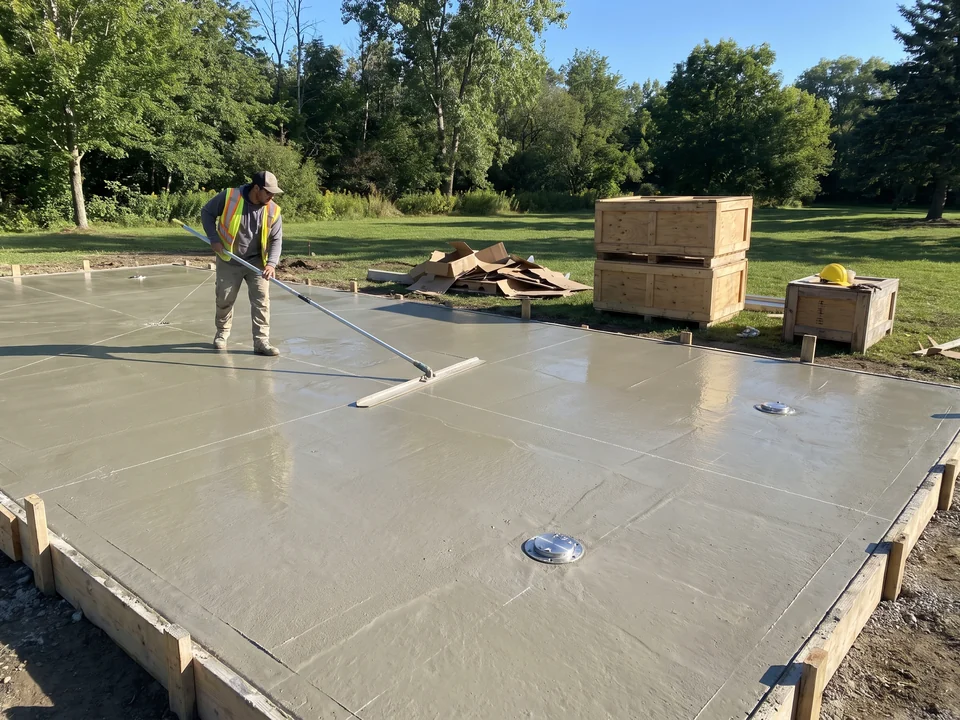

  • A contractor floating a freshly poured splash pad deck, fall lines marked in chalk

    APad deck

    The concrete pad deck and its finish are your contractor's concrete work, built with the pad falls to the drains your water engineer designed.

  • Rubber surfacing on the dry play area meeting the paths and planting

    PDry play surfacing

    Our rubber tiles and poured-in-place EPDM cover the dry play area around the pad, drawn on the same layout; see playground surfacing.

  • A shade sail on its own posts over a play area in a park

    HShade

    Shade over the dry edge and seating stands on its own posts from our steel workshop; see playground shade structures.

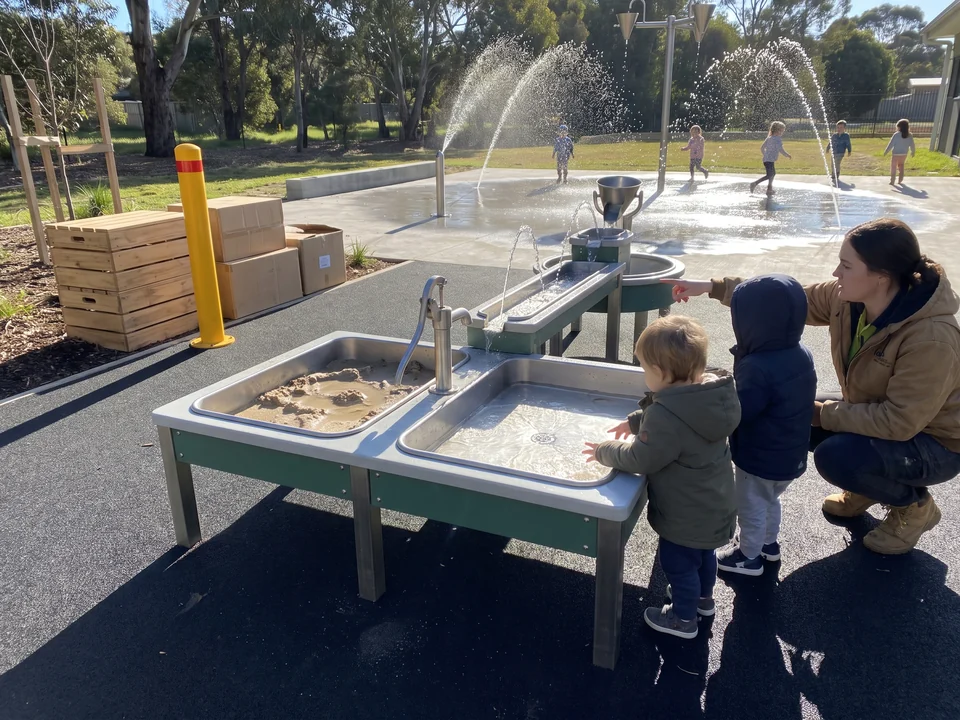

  • A child care center yard with a sand and water play table standing on rubber surfacing

    SChildcare sites

    Preschools and daycare centers that want water play without a pad use sand and water play tables; see preschool and daycare playground equipment.

11/ 13One number per part · one loading date · one container plan

Numbering, Packing and LoadingA Part Numbers From Drawing to Container

Every feature, flange, bucket, nozzle and bollard carries an A number that matches the layout, the mounting detail, the data sheet and the packing list.

The partner factory is scheduled to the same loading date as the rest of your outdoor order, produced in 20–30 days after drawing approval, and the whole site ships on one container plan.

S1W1S1 · DECKSP1H1F1 CRATE 1SPRAYSNOZZLESCRATE 2POSTSARCHCRATE 3A1-007CRATE 4BOLLARDKIT ONE LOADING DATE · 20–30 DAYS AFTER DRAWING APPROVAL A · SPLASH PADTHE REST OF YOUR OUTDOOR ORDER
Anchor flanges and base plates went ahead by air courier · the features follow in the container
Packing list · keyed to A numbers
A1-003 · ground sprayCrate 1
A1-006 · spray postCrate 2
A1-031–034 · nozzlesCrate 1
A1-008 · bollardCrate 4
Spares · security bitsKit

Parts are packed by installation sequence, with the packing list keyed to part numbers, so your installer unpacks features in the order the pad is fitted. Every shipment includes a spare hardware kit with the security bits for the tamper-resistant fasteners.

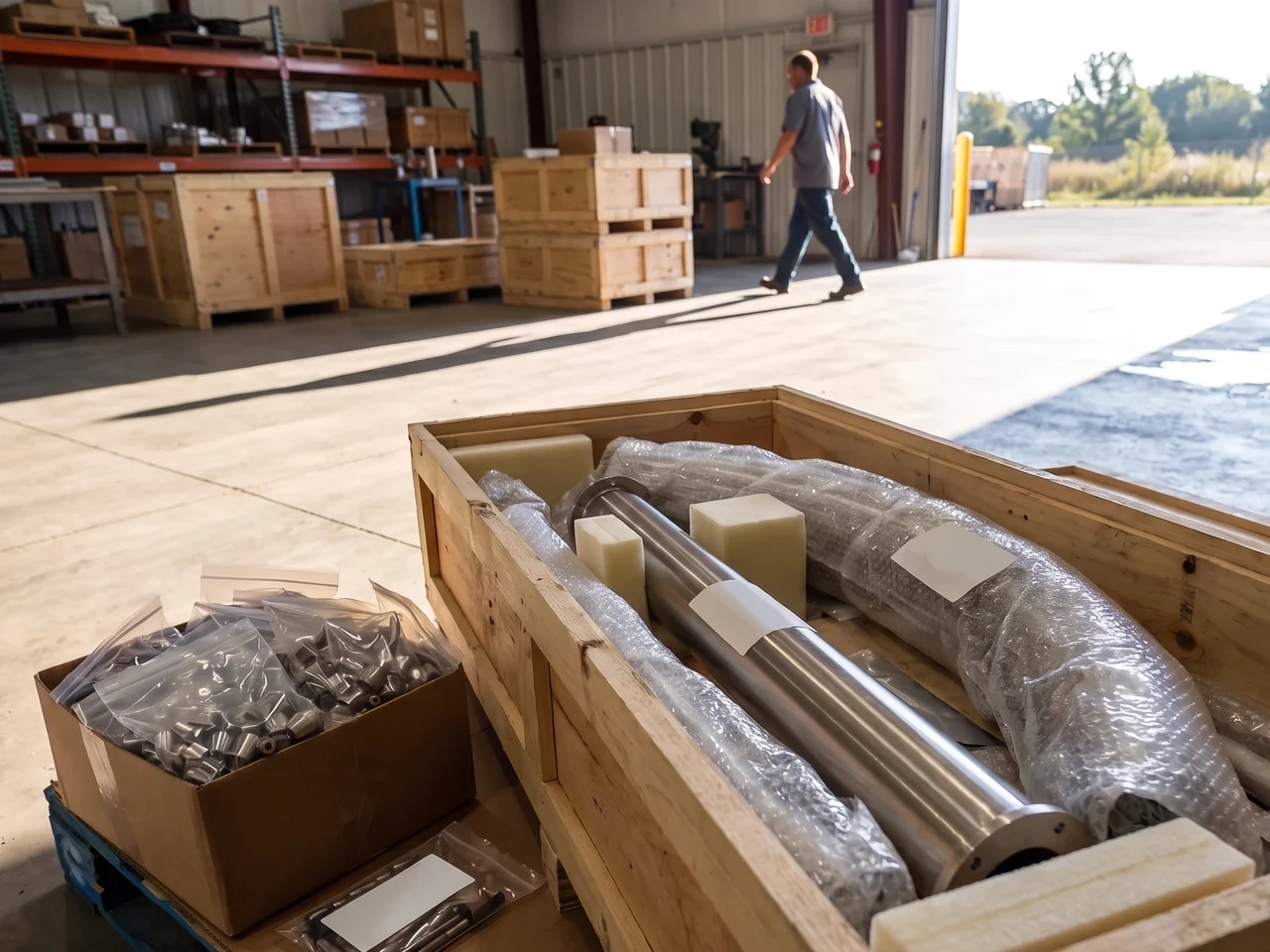

Stainless spray posts and an arch leg wrapped in bubble film, each with its part label, packed in a timber crate with bagged nozzles

Installation support

Your installer fits the features to the flanges with our installation drawings, step-by-step video guides and live video support, with an optional on-site supervisor.

  • Installation drawings
  • Step-by-step video guides
  • Live video support
  • Optional on-site supervisor
12/ 13Remade to the same A number

Warranty, Nozzle Replacement and Maintenance10-Year Stainless, 5-Year Fiberglass

10Years · stainless steel structures
5Years · fiberglass features
Nozzles · wear parts · remade by their part number

Maintenance guide

With your drawings · the features
  • Nozzle care
  • Cleaning
Your water system · your contractor's procedure
  • Winter drain-down

The guide that comes with your drawings covers the features: nozzle care and cleaning. Winter drain-down is part of your water system and your contractor's procedure.

Replacement parts

  1. Photo + A number from your packing list
  2. Reply within 24 hours on business days
  3. Photo confirmation
  4. Made to the same number · shipped

Send a photo of the feature and the A number from your packing list. Replies come within 24 hours on business days, and the replacement ships after photo confirmation, made to the same number.

A maintenance worker unscrewing a worn nozzle on a splash pad with an identical new nozzle beside his hand

Adding features later

New features for a second phase are drawn on the same layout with new A numbers, mounting details and data sheets.

A1-009A1-010BUILTPHASE 2 · NEW A NUMBERS
13/ 139 items · one message
A scaled splash pad site plan with dimension lines, feature positions and access paths marked

What to Send for a Splash Pad Quotation

Send your pad dimensions and the age groups you expect, and the design office returns a 2D and 3D layout within 3 working days. These nine items in one message are enough to place every feature and prepare the mounting details.

Splash pad quotation · 9 items
  • Pad dimensions and site plan, with the playground and seating around it
  • Age groups and expected visitors
  • Features wanted, or let the design office propose the mix
  • Theme and colors for fiberglass pieces
  • Activation: push-button or motion sensor
  • Your water or pool contractor's contact, and the plant room position
  • Drain positions, if your water engineer has them
  • Play-structure standard for climbing decks: ASTM F1487 or EN 1176
  • For replacements: a photo and the A part number, for example A1-006

Send to Anna · WhatsApp +86 177 0272 7677

What is this about?
Age groups
Features
Activation
Standard for climbing decks

File attached? Anna will ask you to send it by email or WhatsApp after the form arrives.

Form not going through? Message Anna on WhatsApp +86 177 0272 7677

Send Your Pad Dimensions WhatsApp
